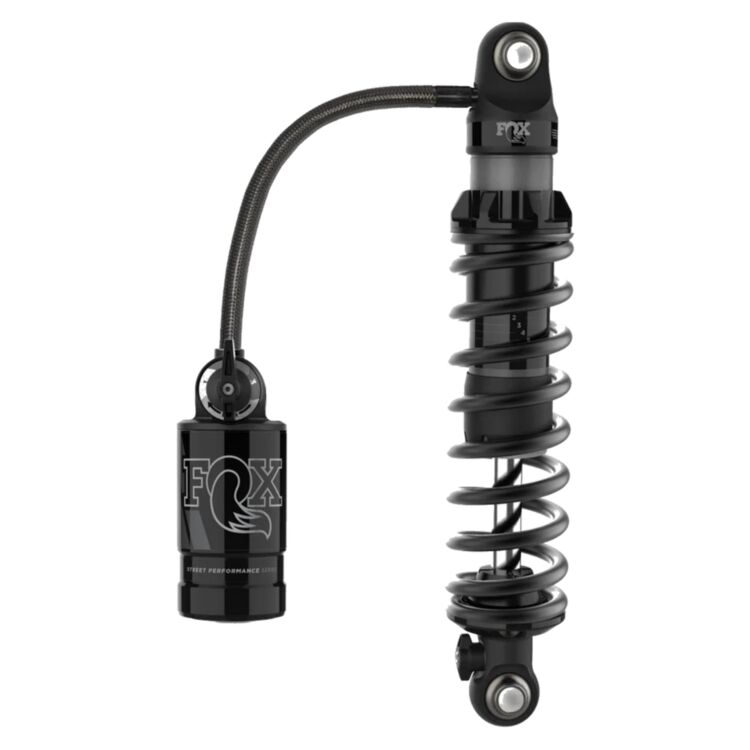

Fox Factory QS3-QSR Remote Reservoir Shocks For Harley Touring 1993-2025

Name: Fox Factory QS3-QSR Remote Reservoir Shocks For Harley Touring 1993-2025
SKU: 281
Availability: InStock

$1,599.99

The QS3-QSR is the top of the line Shock from Fox Factory. With remote reservoirs, IFP technology and two hydraulic adjustments, these shocks are ready for anything you can throw at them!

Category: Suspension

Description
Reviews (0)

Fox Factory QS3-QSR Remote Reservoir Shocks For Harley Touring

The QS3-QSR is the top of the line Shock from Fox Factory. With remote reservoirs, IFP technology and two hydraulic adjustments, these shocks are ready for anything you can throw at them!

Remote reservoir shocks have become the go-to upgrade for Harley riders, and Fox makes one of the best in the business! The external reservoirs increase fluid capacity and improve cooling, reducing the risk of cavitation or bubble in your fluid. Just like brakes, heat is the enemy of shock absorbers, if you keep them cool, they will provide more consistent performance, especially important for heavy bikes loaded with passengers and travel gear.

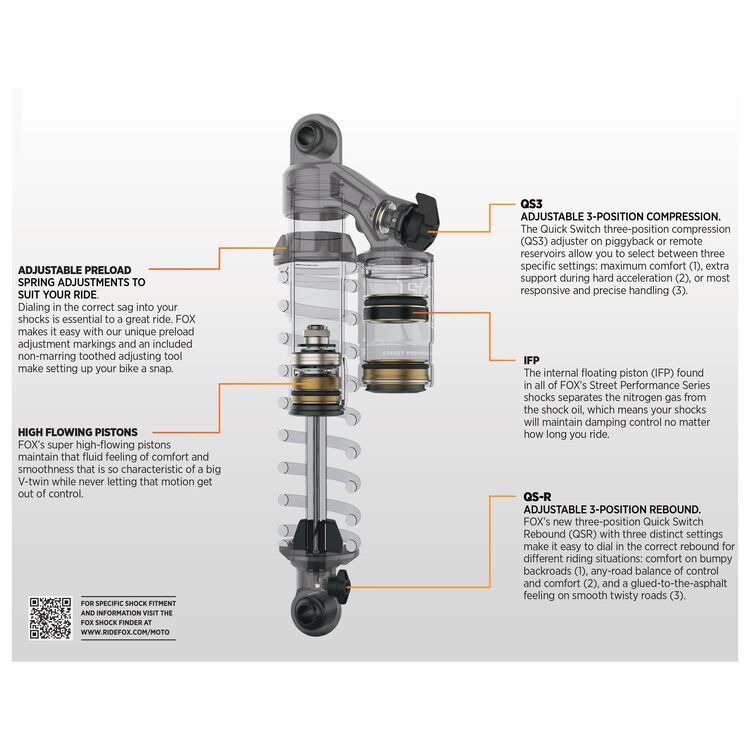

Fox packs these shocks with two incredibly useful hydraulic adjustments QS3, which is a 3 position compression damping lever and QSR which offers 3 rebound settings.

The QS3 (Quick Switch Compression) damping lever is mounted right on the reservoir making for effortless adjustments between three specific settings: maximum comfort, extra support for hard acceleration, or most responsive for precise handling. These adjustments also come in handy when you pick up or drop off a passenger.

QSR or Quick Switch Rebound settings make it easy to dial in the correct rebound rate for different riding situations: comfort for bumpy backroads, any road balance of control and comfort, and a glued to the asphalt setting for smooth twisty roads.

In addition, the remote reservoirs house internal floating pistons to separate the nitrogen gas from the shock oil, meaning the QS3-QSR remote reservoir shocks will maintain damping control no matter how long you ride!

Features:

Model-specific optimized ride tune
QS3 – 3 position quick switch compression adjust
QS3 – 3 position quick switch rebound adjust
Aluminum remote reservoir
Includes fender mounting hardware (for 2014 and later bikes)
Exclusive Preload setting guide marks
Includes easy to use non-marring plastic preload adjust wrench
Gas-charged mono-tube with internal floating piston (IFP)
1 1/2” 6061-T6 aluminum type III hard anodized body
Fully rebuildable and re-valvable
Advanced high-flow, deflective speed-sensitive damping
5/8” low friction, super-finished hard chrome shaft

Note: Heavy duty springs for riders and loads over 240 lbs. Included reservoir bracket is for 2014 and newer models only. 2013 and older bikes will need a custom mounting solution. 14″ shocks require a shorty style exhaust for clearance.
